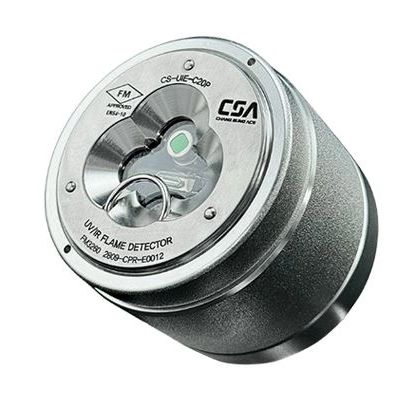

CS-UIE-C20P
Specifications
- Operating Voltage: 19.2 VDC to 28.8 VDC
- Power Consumption: 30 mA in standby, 75 mA during alarm
- Output Signals: Alarm relay (SPST), fault relay (SPST), 4–20 mA, RS-485
- Housing Material: Stainless steel (316L) or aluminum alloy (AL6061)
- Dimensions & Weight:
- Size: Height 61.5 mm × Diameter 75 mm
- Weight: Approx. 3.0 kg (stainless steel) or 0.49 kg (aluminum alloy)
Features
- Communication Interface: Supports RS-485 for real-time monitoring
- Data Logging: Built-in event logger with timestamp for easy retrieval
- Easy Installation: Integrated wiring design simplifies setup and enhances convenience
- False Alarm Immunity: Effectively distinguishes real flames from false sources
Sensing Technology
- Spectral Sensitivity:
o UV wavelength range: 185–260 nm
o IR wavelength: 4.64 μm
- Field of View: 100° horizontal and vertical wide-angle detection
- Detection Range: Up to 36 meters (approx. 118 feet)
- Response Time: Typical response time is 10 seconds, maximum 30 seconds
Certifications & Safety Standards
- International Certifications: Complies with FM3260, EN54-10 (2809-CPR-E0012)
- Explosion-Proof Rating: Meets ATEX and IECEx standards for hazardous environments
- Ex db IIC T6 Gb / Ex tb IIIC T80°C Db（-40°C to 75°C）
- II 2 G Ex db IIC T6 Gb，IP66 / 67
Detection Performance (by Fuel Type & Distance)
Fuel Type Flame Size Detection Distance
Heptane 1ft x 1ft 36 m （118 ft）
Gasoline 1ft x 1ft 36 m （118 ft）
Jet A 1ft x 1ft 25 m （82 ft）
JP-4 1ft x 1ft 25 m （82 ft）
Diesel 1ft x 1ft 25 m （82 ft）
Kerosene 1ft x 1ft 25 m （82 ft）
Alcohol 1ft x 1ft 25 m （82 ft）
Paper 1ft x 1ft 9 m （30 ft）
Propane 20-inch flame column 9 m （30 ft）
Methane 20-inch flame column 9 m （30 ft）
