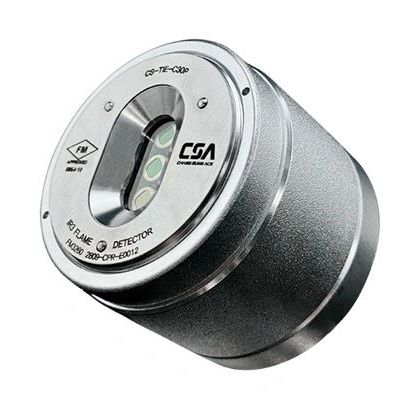

CS-TIE-C30P

---

• Operating Voltage: 19.2 VDC to 28.8 VDC
• Power Consumption: 30 mA in standby mode, 75 mA during alarm
• Output Signals: Alarm relay (SPST), fault relay (SPST), 4–20 mA, RS-485
• Housing Material: Stainless steel (316L) or aluminum alloy (AL6061)
• Dimensions & Weight:
  •  Size: Height 61.5 mm × Diameter 75 mm
  •  Weight: Approx. 3.0 kg (stainless steel) or 0.49 kg (aluminum alloy)

• Communication Interface: Supports RS-485 for real-time monitoring
• Data Logging: Built-in event logger with timestamp for easy record retrieval
• Easy Installation: Integrated wiring design simplifies installation and enhances convenience
• False Alarm Immunity: Effectively distinguishes real flames from false sources

• Spectral Sensitivity: Infrared wavelength range: 3.95–5.30 μm
• Field of View: 90° horizontal and 90° vertical wide-angle detection
• Detection Range: Up to 60 meters (approx. 197 feet)
• Response Time: Typical response time is 10 seconds, maximum 30 seconds​

• International Certifications: Complies with FM3260, EN54-10 (2809-CPR-E0012)
• Explosion-Proof Rating: Meets ATEX and IECEx standards for extreme and hazardous environments
  • Ex db IIC T6 Gb / Ex tb IIIC T80°C Db (-40°C to 75°C)。​
  • II 2 G Ex db IIC T6 Gb，IP66 / 67。​

Fuel Type             Flame Size          Detection Distance

Heptane                  1ft x 1ft                  60 m（197 ft）

Gasoline                 1ft x 1ft                  60 m（197 ft）

Jet A                        1ft x 1ft                  42 m（138 ft）

JP-4                        1ft x 1ft                  42 m（138 ft）

Diesel                      1ft x 1ft                  42 m（138 ft）

Kerosene                 1ft x 1ft                  42 m（138 ft）

Alcohol                    1ft x 1ft                  36 m（118 ft）

Paper                      1ft x 1ft                   27 m（89 ft）

Propane        20-inch flame column       27 m（89 ft）

 Methane       20-inch flame column       21 m（69 ft）
